DsPIC Block/Digital Output Write
The "Digtal Output write" block write the logical value to the microcontroller pin.

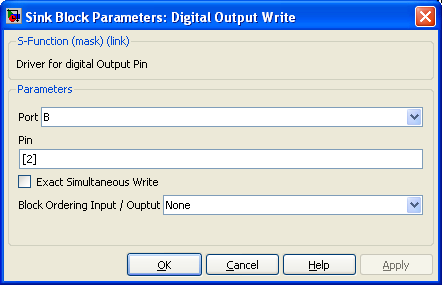

Dialog Box
Port
- Port used
Pin
- Pin used, start at 0 and is defined in vector form.
Block Ordering Input / Output
Create one input and/or output port on simulink. This port is just used to set the order of execution between severals blocks. You want for example inside one time step set a pin to its high value and to its low value just after (create a glitch). You will used two blocks digital output, but they should be activated in a certain order. Connecting with the ordering Input/Output port the first block to the second one (temporaly speaking) will define the execution order.
See forum related question: http://www.kerhuel.eu/forum/viewtopic.php?f=6&t=367&p=1500#p1492 Please feel free to complete this page !
