Block Digital Input

The Digtal Input block reads the logical value of the selected microcontroller pin.

Dialog Box Parameters

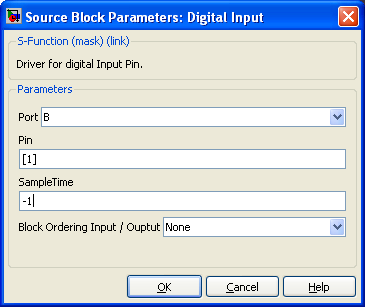

Digital Input Dialog

Port

  • Port used

Pin

  • Pin used, start at 0 and is defined in vector form allowing several Pin to be read at the same time.

Sample Time

  • -1 is inherited

Block Ordering Input / Output

Create one input and/or output port on simulink. This port is virtual and do not add code in the microcontroller. It is used to force the execution order between two dsPIC/PIC24 peripheral blocks. (see examples)
