File:Free2move Schematic.png
Original file (1,000 × 1,046 pixels, file size: 29 KB, MIME type: image/png)
Normal 0 21 false false false FR X-NONE X-NONE MicrosoftInternetExplorer4

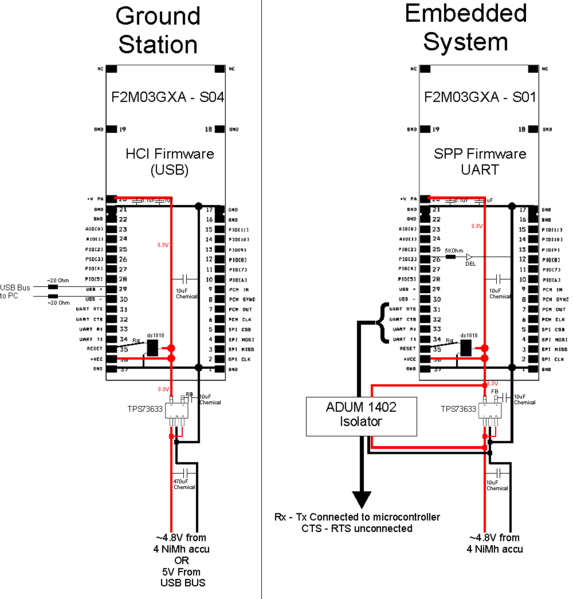

Electronic schematic of the two free2move Bluetooth module. The left is the F2M03GXA-S03 (USB version). Connected through USB to a computer, it is used as a long range USB Bluetooth dongle able to communicate with the second Bluetooth module. The left schematic is the embedded module: F2M03GXA-S01 (UART version). It is connected to the dsPIC microcontroller through UART. When both modules are paired, a virtual COM port is created on the computer allowing transmit/receive data from the embedded system.
File history
Click on a date/time to view the file as it appeared at that time.
| Date/Time | Thumbnail | Dimensions | User | Comment | |
|---|---|---|---|---|---|
| current | 02:42, 14 January 2009 | | 1,000 × 1,046 (29 KB) | LubinKerhuel (talk | contribs) | Normal 0 21 false false false FR X-NONE X-NONE MicrosoftInternetExplorer4 Electronic schematic of the two free2move Bluetooth module. The left is the F2M03GXA-S03 (US |
