File:IMU dsPIC 30f4012 LogData Raw.png

From http://www.kerhuel.eu/wiki - Simulink device driver Blockset for dsPIC / PIC24 / PIC32 Microcontrollers --[[User:LubinKerhuel|LubinKerhuel]] 12:40, 3 September 2009 (UTC)
Jump to: navigation, search
Original file(894 × 773 pixels, file size: 35 KB, MIME type: image/png)

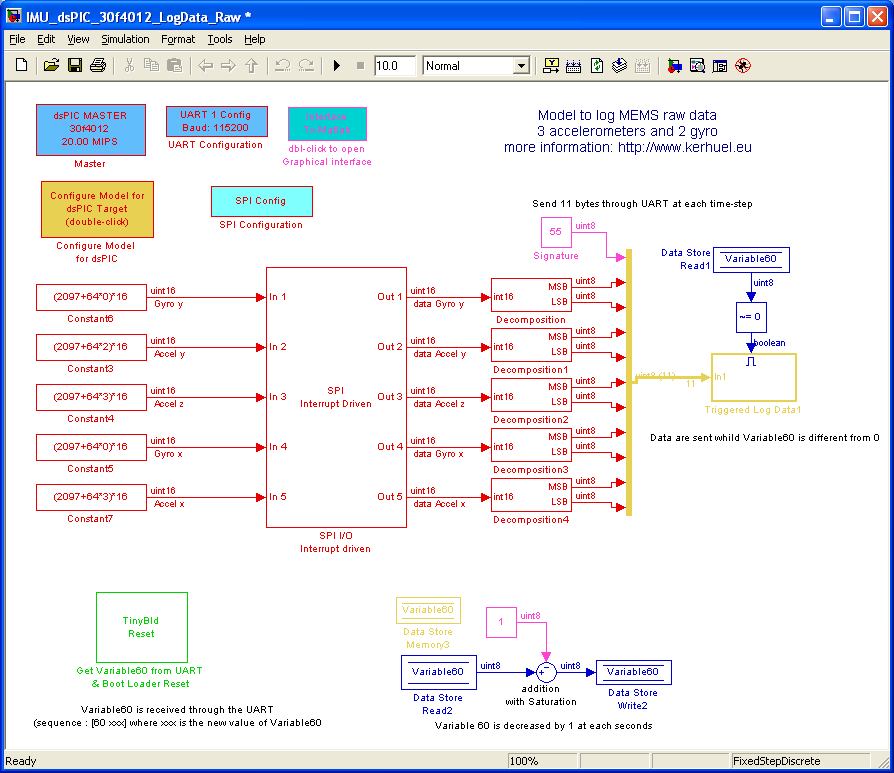

IMU_dsPIC_30f4012_LogData_Raw Simulink model: Once this model is compiled, the dsPIC (30f4012) transmit the raw values from the MEMs sensors. Data are sent to Matlab (or labview) through the UART at 115200bps with the Tx Output block. The UART buffer do not overflow with this mode, because 9 bytes are sent and the 115200bpd UART speed allow to send 11,52 bytes in one 1ms time-step. Thus all data are successfully transmitted to matlab. Logged data can feed a simulink simulation.

File history

Click on a date/time to view the file as it appeared at that time.

Date/TimeThumbnailDimensionsUserComment
current12:32, 12 July 2008Thumbnail for version as of 12:32, 12 July 2008894 × 773 (35 KB)LubinKerhuel (Talk | contribs)IMU_dsPIC_30f4012_LogData_Raw Simulink model: Once this model is compiled, the dsPIC (30f4012) transmit the raw values from the MEMs sensors. Data are sent to Matlab (or labview) through the UART at 115200bps with the Tx Output block. The UART buffer do
  • You cannot overwrite this file.

The following page links to this file:
