Oscillator mode & MIPS configuration

[gladiac]

Hi Lubin,

My device is 30f6014A and demo board is dsPICDEM 1.1 of Microchip. The crystal of the board is 7.3728 MHz. So the typical configs are:
XT mode - 7.3728 MHz /1.8432 MIPS
XT w/ PLL 4x mode - 29.4912 MHz / 7.3728 MIPS
XT w/ PLL 8x mode - 58.9824 MHz /14.7456 MIPS
XT w/ PLL 16x mode - 117.9648 MHz / 29.4912 MIPS

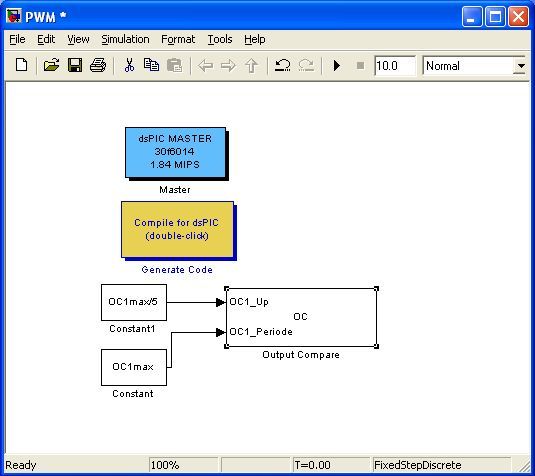

In the following PWM model,

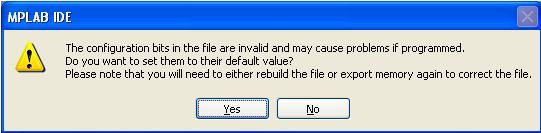

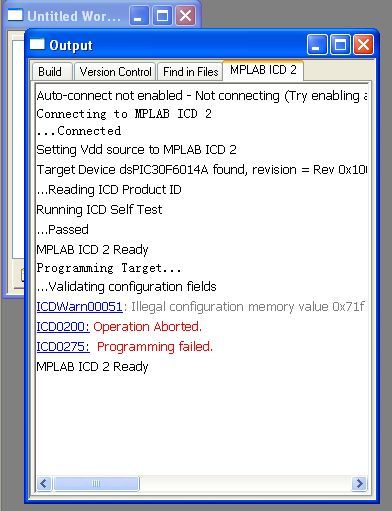

If I set the XT mode/1.8432 MIPS in 'master' block, building of HEX code is OK, but errors occured when HEX code import to MPLAB and also in programming process.



If I set the XT with PLL mode, building and programming are both OK, but actual output period is not equal to the value which set in the model.
So is there any problem in configuration?

Thanks,
Gladiac

[LubinKerhuel]

Hi Gladiac,

This look like a bug !
Could you :
- Upload the simulink model
- precise your matlab version
- Precise your C30 compiler version
- Precise the MPLAB version

I will have a look.
Lubin

[gladiac]

OK. This is model, and MATLAB is 2007b,C30 is 3.11B, MPLAB is 8.0.

[LubinKerhuel]

If I set the XT mode/1.8432 MIPS in 'master' block, building of HEX code is OK, but errors occured when HEX code import to MPLAB and also in programming process.

I do not get this error with MPLAB 8.10.
Could you upgrade to this mplab and try ?

You could have a look on the configurations bits once the .hex is loaded in MPLAB. (Configure ==> Configuration bits)

Lubin

[gladiac]

Hi Lubin,

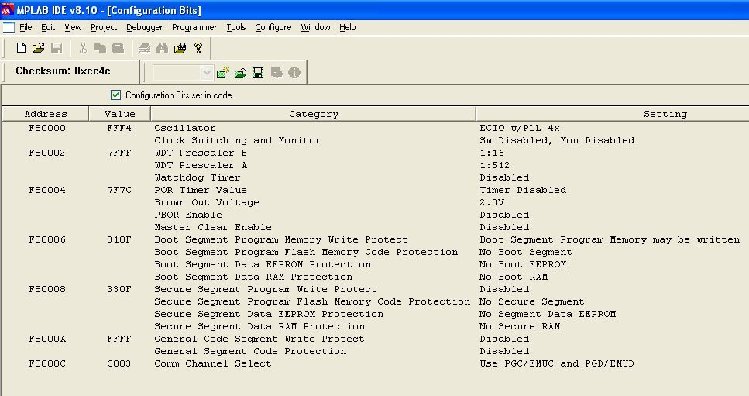

I still get the same error. And I have checked the config bits, the oscillator is set incorrect, I set XT mode but it's ECIO w/PLL. I use 30f6014A device, MTALB 2007b, 0.99a toolbox, C 30 3.11b compiler and MPLAB V8.1.

Thanks.
gladiac

[gladiac]

Hi Lubin,

I know the reason. Your toolbox support 30f6014 correctly, may be not for 30f6014A. I found that the setups of config bits are different for 30f6014 and 30f6014A in MPLAB. They are not compatible. So can you add the support of 30f6014A individually? I think this also might be the solution for my problem of the controller design which I mentioned before.Thanks very much.

Cheers,
Gladiac

[LubinKerhuel]

The following chips were added : 30f6010 ; 30f6011A ; 30f6012A ; 30f6013A ; 30f6014A. Theses changes will be available in the next release version (0.99b)

It solved this problem.
